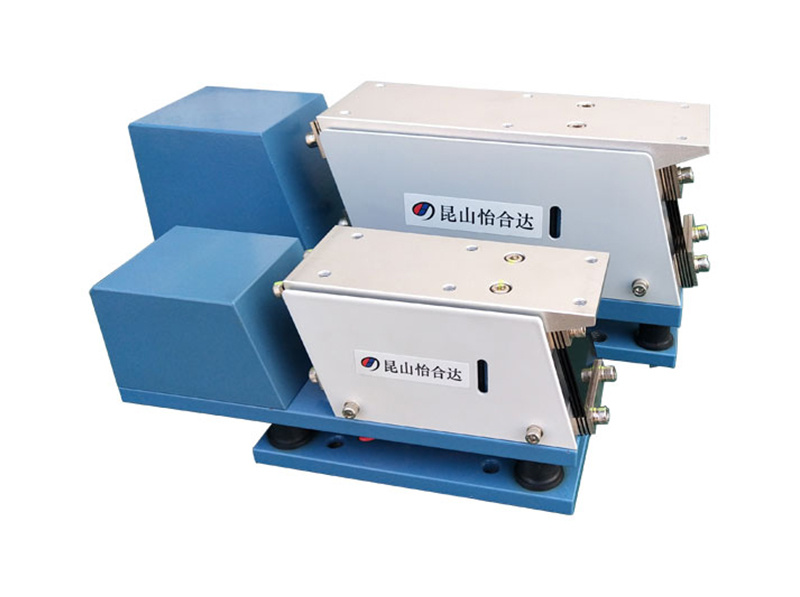

Linear Vibratory Feeder

| Linear Vibratory Feeder

This series of linear vibratory feeders is suitable for most medium to large-sized materials. It features large amplitude adjustments and provides fast, stable linear feeding with strong feeding capacity. The feeders easily reach their optimal working state when used with a frequency modulation controller and simple adjustments to the counterweight block, eliminating the need to adjust springs or electromagnets.

ZT-450P/ZT-650P

ZT-900P

Specification

Model	Input voltage(V)	Rated current(A)	Frequency（Hz）	Net weight of driving part (kg)
ZT-450P	220	0.13	80～110	7
ZT-650P	220	0.34	80～110	16
ZT-900P	220	0.34	80～110	25

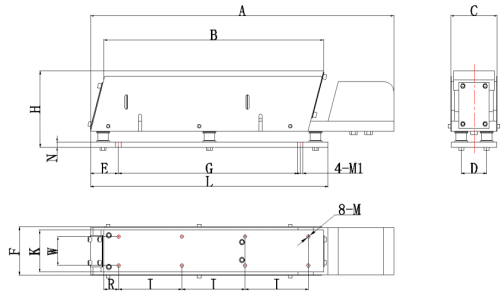

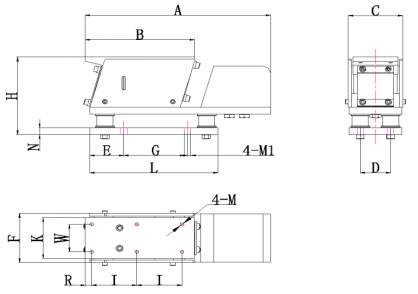

Dimension Table

Unit：mm

Model	A	B	C	D	E	F	G	H	I	K	L	M	M1	M	R	W
ZT-450P	246	145	80	40	45	70	85	113	60	60	170	M6	M10	10	40	40
ZT-650P	356	230	100	69	50	89	185	147	102.5	80	245	M8	M10	10	10	60
ZT-900P	600	425	92	50	55	92	360	145	125	80	470	M8	M12	10	29.6	55
