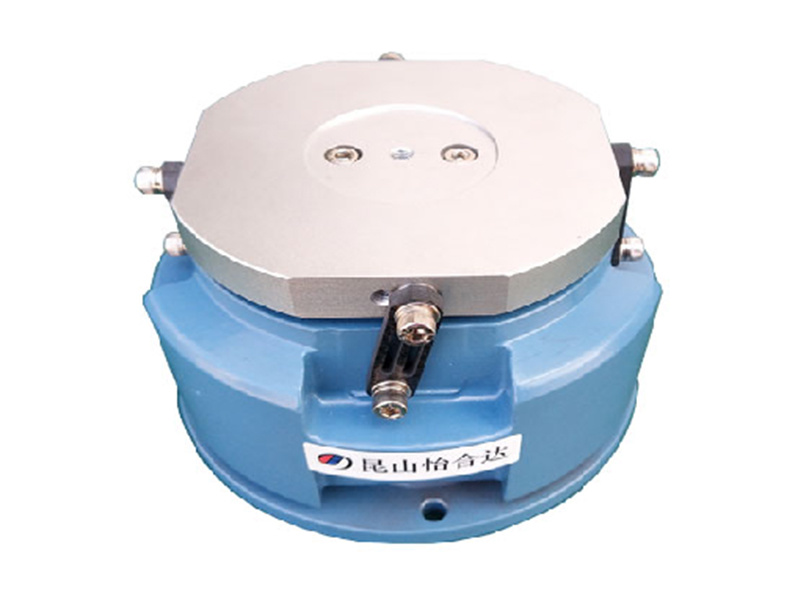

Precision Circular Vibratory Feeder


| Precision Circular Vibratory Feeder


The Precision Circular Vibratory Feeder Series is designed and manufactured for feeding small materials. It features stable and rapid vibration, low noise, and can easily reach the optimal working state when used in conjunction with a frequency modulation controller.



YT-100GP/YT-150GP/YT-200GP



Specification

Model

Input voltage(V)

Rated current(A)

Frequency(Hz)

Net weight of driving part (kg)

YT-100GP

220

0.03

180~230

YT-150GP

220

0.13

180~230

YT-200GP

220

0.13

180~230

14

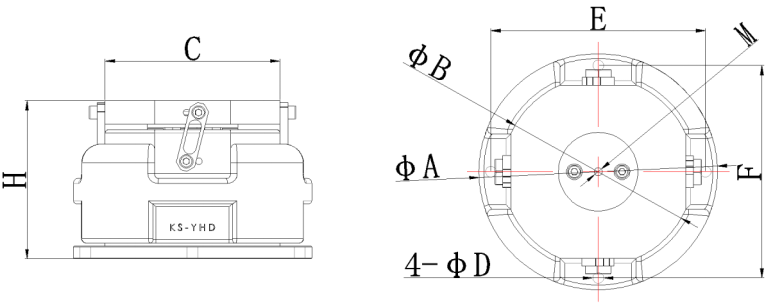

Dimension Table

Unit:mm

Model

φA

φB

H

C

φD

E

F

M

YT-100GP

100

80

68

70

5.5

90

90

M6

YT-150GP

150

120

101

110

6.8

135

135

M6

YT-200GP

200

170

101

160

185

185

M8
