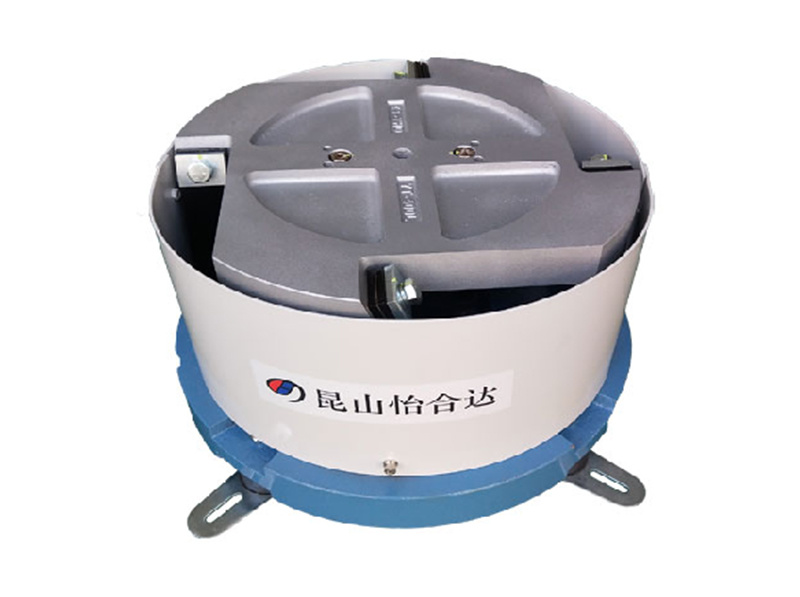

Vibratory Bowl Feeder

| Vibratory Bowl Feeder

Vibratory Bowl Feeder Series is widely used for material feeding with large amplitude adjustments, good load-bearing performance, and stable vibration. It reaches optimal working condition easily when paired with a frequency modulation controller.

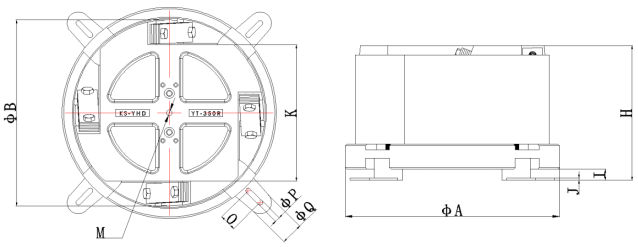

YT-200/YT-300

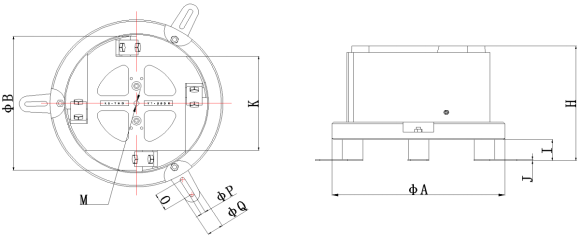

YT-250/YT-350/YT-400/YT-500

Specification

Model	Input voltage(V)	Rated current(A)	Frequency（Hz）	Net weight of driving part (kg)
YT-200	220	0.82	50～100	20
YT-250	220	1.47	50～100	30
YT-300	220	2.20	50～100	40
YT-350	220	2.98	40～90	65
YT-400	220	3.50	40～90	100
YT-500	220	4.00	40～90	155

Dimension Table

Unit：mm

型号	φA	φB	H	I	J	K	M	O	P	Q
YT-200	250	190	168	20	3	120	10	12	6	22
YT-250	280	240	210	22	3	180	12	20	7	30
YT-300	336	270	231	43	3	190	12	35	9	32
YT-350	380	335	246	24	4	245	12	30	9	40
YT-400	440	380	290	23	4	267	16	35	9	32
YT-500	540	480	336	23	4	362	16	50	11	40
