Vibratory Hopper Series


| Vibratory Hopper Series

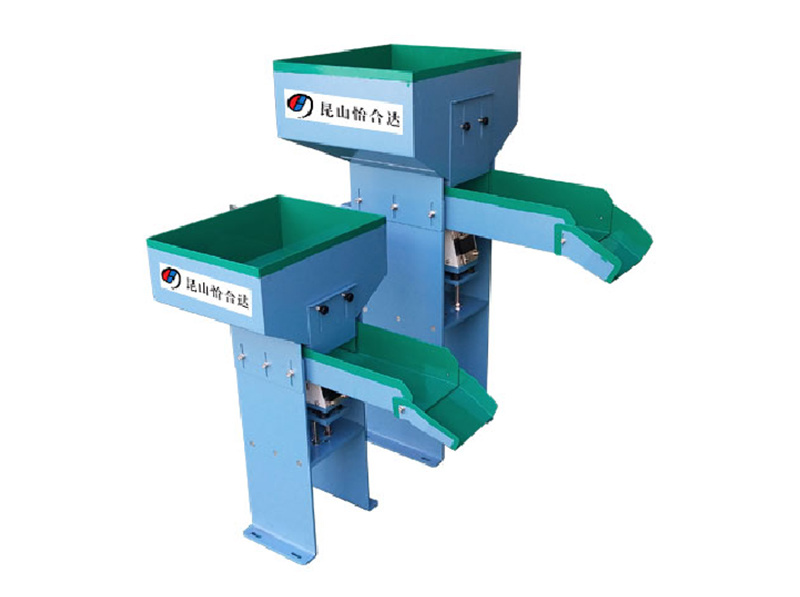

The Vibratory Material Storage Hopper is used for storing and supplying materials. When integrated with a vibratory bowl, the Vibratory Material Storage Hopper significantly minimizes the need for manual material feeding. This integration streamlines the process, leading to a decrease in workforce exertion and a more efficient workflow.



A1/B1



Specification

Model

Vibrator

Input voltage(V)

Rated current(A)

Frequency(Hz)

Load Capacity (L)

Total Weight (kg)

A1

ZT-450P

220

0.13

80~110

18.5

26

B1

ZT-650P

220

0.34

80~110

37

51

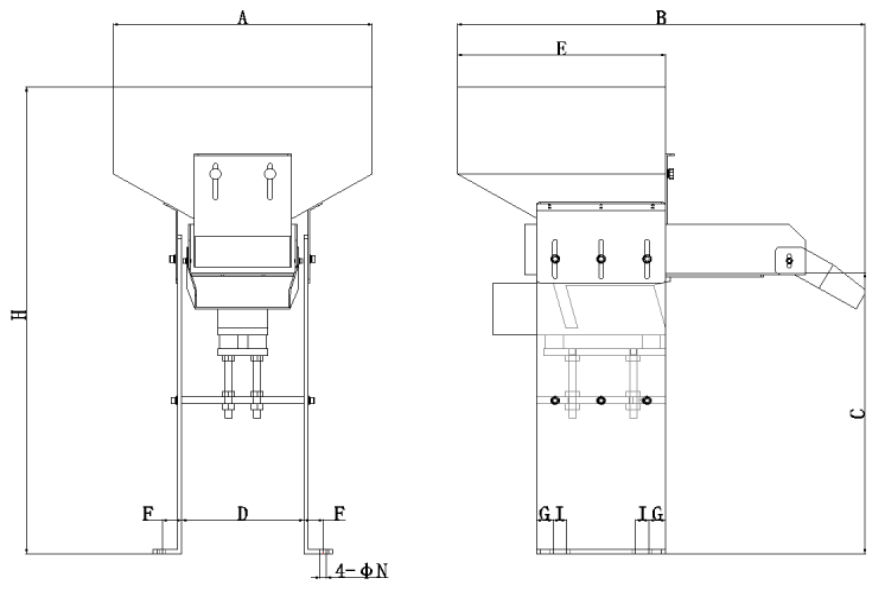

Dimension Table

Unit:mm

Model

A

B

C

D

E

F

G

H

I

φN

A1

360

567

405

180

290

27

23

673

19

B1

430

765

600

200

370

27

24

948

18
